Delta

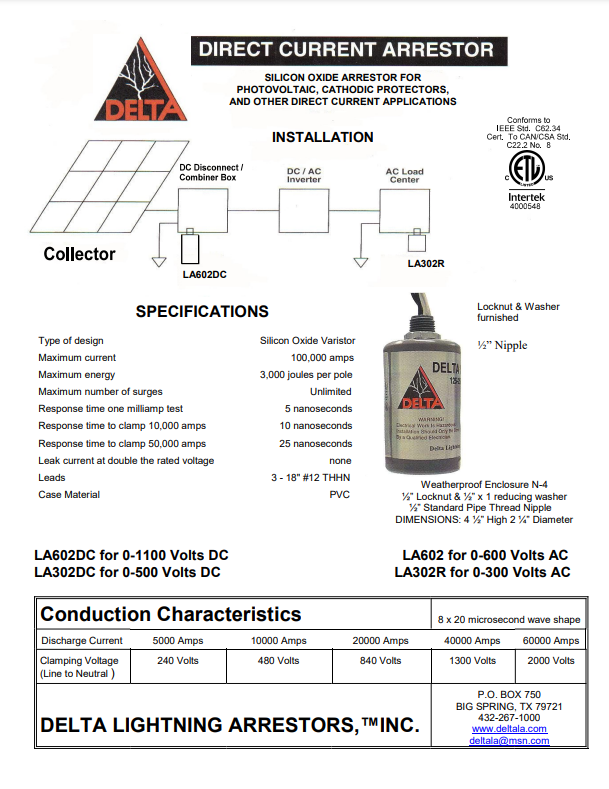

LA302DC 3 wire DC: 18" leads, 0-500 volts
Weatherproof Enclosure N-4
Dimensions:
4-1/2" High,
2-1/4" Diameter
Dimensions:
4-1/2" High,
2-1/4" Diameter
LA602DC
|
Specifications
|
|||
| Type of design | Silicon Oxide Varistor |
 Weatherproof Enclosure N-4
Dimensions: 2-1/4" High, 2-1/4" Diameter |
|
| Maximum number of surges | Unlimited | ||
| Response time one milliamp test | 5 nanoseconds | ||
| Response time to clamp 10,000 amps | 10 nanoseconds | ||
| Response time to clamp 50,000 amps | 25 nanoseconds | ||
Delta silicon arrestors comply with all requirements of photovoltaic systems.
1. Deltas do not draw continuous current.
2. Deltas consume no power during stand-by.
3. Delta's clamping voltage does not change with age.
4. Delta arrestors fail open circuit to permit continued system operation.
5. Deltas contain no current limiting fuses or resistance.
6. Deltas are fire resistant.
