CMD-3A-111

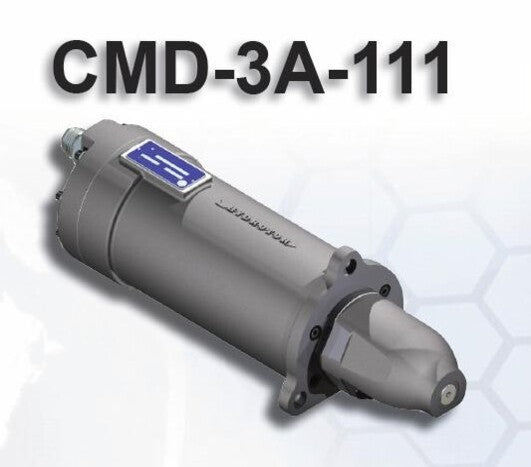

CMD-3A-111 Hydraulic Starter

Flange type: SAE#3

Flange to ring gear dimension: 2.00"

Number of teeth: 12

Diametral pitch: 6/8

Pinion outside diameter: 2.250"

Pressure angle: 20°

Rotation: Clockwise

Motor housing: Aluminum

Pinion housing: Ductile iron

Barrel: Steel

Piston: Bronze Alloy

Number of pistons: 7

Displacement: 3.50 in³/REV

Speed range: 0-4500 RPM

Drive type: Inertia

Maximum working pressure: 3000 PSI

Duty cycle: Intermittent

Maximum torque: 120 Ft-lbs

Weight: 40.0 lbs

Overall volumetric efficiency: 92%

Recommended fluid: Red hydraulic fluid (MIL-H-5606)

• Model: CMD-3A-111
• Manufacturer: Kocsis Technology
